3-D Micro X-Ray Images May Help Answer Questions About Fried Foods' Internal Structure

29 Feb 2016

29 Feb 2016 --- What happens to food and its microstructure when it is fried is a complicated process, both scientifically and mathematically speaking. While consumers want a product that is crispy and tasty, food scientists seek to get a closer glimpse into what exactly is going on inside the food during frying in order to improve products.

Particularly, Pawan Takhar, a University of Illinois food scientist, is interested in the food's uptake of oil during frying and how that oil gets distributed throughout the food. "Through conventional lab techniques we can already see how much oil content is in food material, but we didn't know how it gets distributed throughout the material," he says.

To understand the distribution of oil better, Takhar and his lab recently conducted a study using X-ray micro-computed tomography (micro-CT) to gain 3D images of the microstructure of fried potato disks after they had been fried for various lengths of time.

Takhar told FoodIngredientsFirst: “This paper helps to improve our understanding of the formation of pores and the waviness (tortuosity) of porous pathways in a material during frying. The overall process of frying is very complex.”

“The porous structure plays a crucial role in affecting both oil penetration and texture formation. The pores act as pathways for water, vapor and oil movement. The air pockets in food affect texture perceived in mouth. This paper is one step in improving our understanding,” says Takhar.

During deep frying, as food is immersed in hot oil, water in that food quickly evaporates and steam pressure builds. This pressure affects the microstructure, including the porosity, the number and size of pores in the food as well as the twistiness of the pathways between those pores (tortuosity). This determines how and how much oil gets taken up into the food.

For the study, russet potatoes cut into disks that were 45-mm in diameter and 1.65 mm thick were fried at 190 degrees Celsius for 20, 40, 60, or 80 seconds, freeze dried, and scanned.

Takhar states that it is possible to research other types of foods. “The requirement is that foods need to be dry. If a sample deforms during scanning, you get fuzzy images,” he says, “This makes it challenging to use it for wet food samples. We performed freeze-drying of samples before using them in micro CT. We had to test multiple methods to stabilize the food samples, and finally selected freeze-drying as it disturbed pore structure and oil distribution only minimally.”

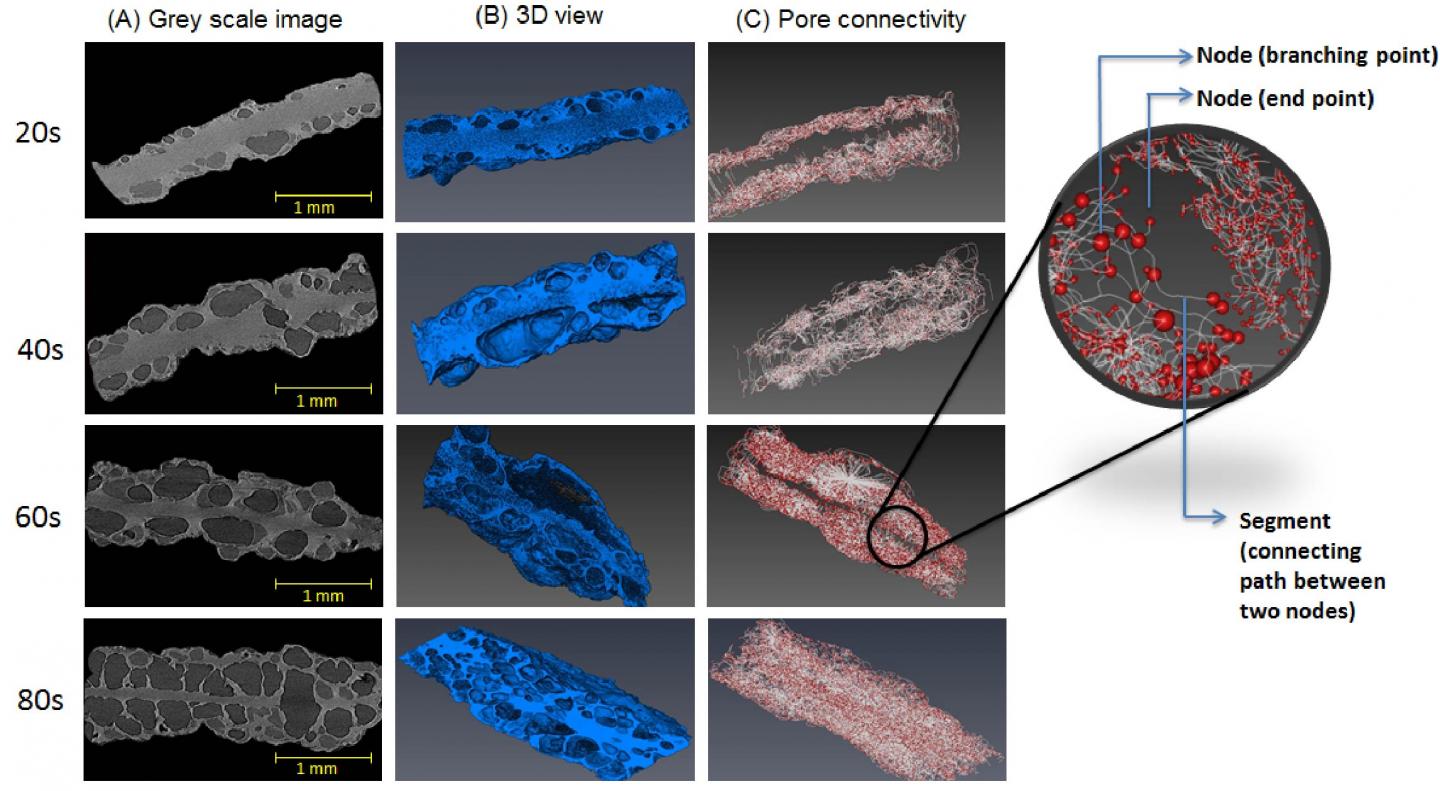

Takhar says about 986 2D images of the potato samples were collected and then combined to produce 3D images. Using the 3D images, they were able to gain more information about the pores and pore networks in the material.

The researchers observed that as frying time increased, pore size increased, allowing for greater uptake of oil. They also saw a correlation between oil content and how the network of pathways between the pores changed throughout the frying time. These pathways act like channels for water and vapor flow and oil penetration in the food.

"As you fry the material, you can see how those pore structures are forming," Takhar says. "We found that in the beginning of frying, the pore network is very complicated. The waviness in the pathway, the tortuosity, is very complex in the beginning so the material resists oil penetration. But as the frying progresses, those pathways become simpler. Pores open up and are easily accessible from the outside and oil can be taken up."

Takhar also explains that oil was observed distributed across the full thickness of the potato disks. In thicker materials with lots of moisture (like chicken nuggets and French fries), they have observed the oil to remain near the surface as continuous evaporation helps to resist oil penetration.

“It is not easy to make a product that has no oil and still provides taste, flavor and texture that consumers enjoy,” he says, “People like that fried flavor and the texture of crispiness outside and softness inside. At the same time you want to reduce the oil content to make the food healthier.”

While Takhar and his lab have done mathematical modeling of what happens during frying - just one previous paper outlines over 100 mathematical equations involved in the process - he says this study provides some experimental validation as to what is happening inside the food material.

“I would say we still only understand about 10 percent of what is taking place during frying,” says Takhar. He and his lab have studied the effects of frying for ten years. “For an engineer or a food scientist, it's the ultimate problem because it's so complicated.”

“Our long term goal is to provide fundamental information that food industry can utilize to reduce fat content of fried foods without compromising with taste and texture,” Takhar says.
